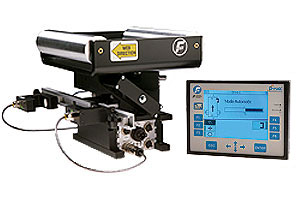

D-MAX卷材纠偏系统

一个由模块化的组件构成的功能强大的系统，用以提高效率和卷装质量。可以将标准程序预装入控制器系统，也可以将它作为多功能组件独立安装使用。虽然该控制器外观朴实无华，但是它却能够对卷材进行最为精确的纠偏操作，您还可以选择使用功能强大的互联网系统和远程系统监控程序。图形化的操作界面和简明易懂的操作语言可以简化您的安装和操作步骤。

• Complete, pre-wired and pre-configured solution
• D-MAX Operator Interface and Controller can be used as feature-rich stand-alone components or integrated into an existing system
• Accessible from any PLC that communicates over DeviceNet, Ethernet Modbus TCP/IP, EtherNet/IP, Profibus,Profinet, CC Link, and CANopen
• Able to drive up to two guides, 4 sensors and an Ethernet port
• Backwards compatible to A9 (over 20 years of web guide controllers)

Display Feedback: Text, Guiding Nomenclature & Web Guide Graphics

Operator Interface
Specifications:
Display:
320 x 240 pixels, QVGA Graphic LCD
Viewing Area:
4.8” x 3.6” (122 mm x 92 mm)
Communication Type: Ethernet

D-MAX Controller
Specifications:
Max Motor Outputs:
4 amps per drive
Drives per controller:
1 (single) or 2 (dual)
Sensor Inputs:
4 total
Parallel Port Connectivity:
Discrete 6 Inputs,
2 Outputs, Line Speed and RGPC
